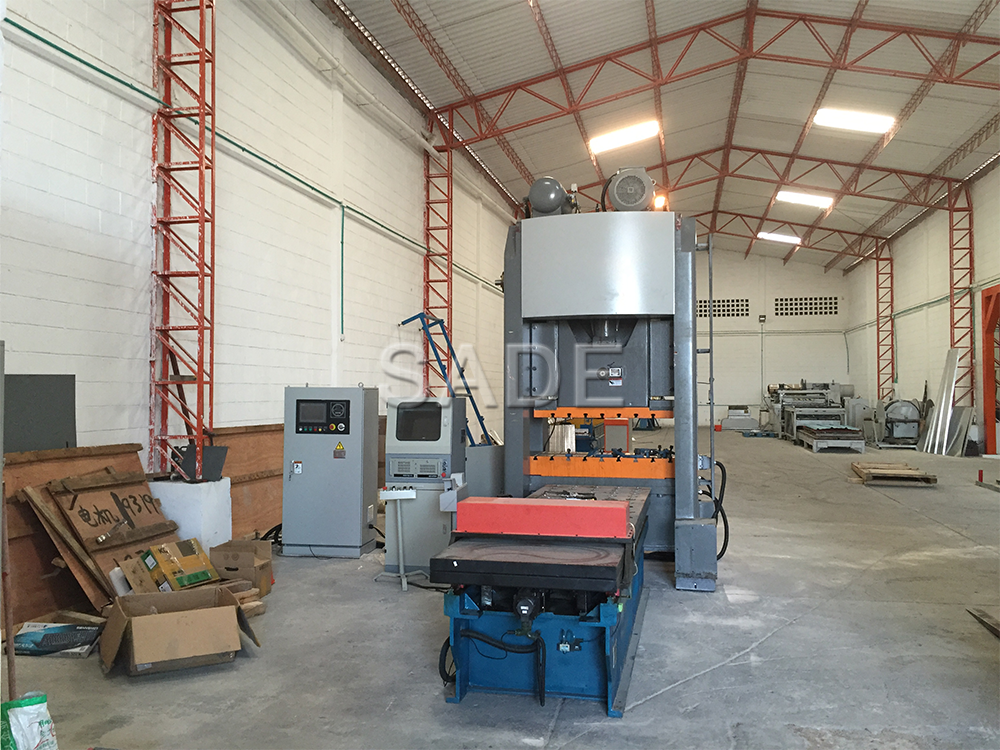

The machines are used for punching all kinds of perforated plate mesh in construction, common hardware, window and door, machine protecting etc.
The raw material of sheet including steel plate, iron plate, stainless steel plate, copper plate, aluminum plate, galvanized plate etc.
The shape of hole: round hole, long round hole, square hole, trigonal hole, bulgy hole (scale hole), diamond hole, hexagonal hole, crossed hole etc..
Machine performance:
The perforated metal machine include two kinds:
one is weleded by steel plate with different specifications of mold plus the rack type feeder or roller type feeder.
Feature of Our machine
1.Welded steel plate framework with high intensity of machine body.
2.The middle crankshaft adopts special rolling bearing,and the precision roller bearing is adopted for front and rear side.
3.Combined pneumatic friction clutch and brake.
4.Equipped with hydraulic overload protecting device.
5.Eight-side precision needle roller guide rail.
6.Pitman screw locked up with oil pressure.
7.Electric shut height adjustment with digital display.
8.Equipped with lifting balance cylinder device.
9.Duplex valves imported from Japan.
10.Control by PLC with international brand.
11.Buttons,indicators,AC contactors,air circuit breakers and other controlling devices are imported from
international brand.
12. Electronic cam device with intelligent top dead center stop function and several safety function.
13. Optional air cushion device,NC feeding machine,light curtain and inverter with international brand to fulfill stroke adjustment.
The company can process the different kinds of type according the customer order.
· Working Width : 610mm ,750mm, 1250mm,1500mm · Thickness : Mild Steel 0.5mm - 3.0mm · Speed : Max. 400 spm
Model | JM31G-80 | JM31G-125 | JM31G-160 | JM31G-200 |
Nominal Force(KN) | 800 | 1250 | 1600 | 2000 |
Nominal Stroke(MM) | 2 | 3 | 3 | 3 |
Slide Stroke(MM) | 30 | 30 | 30 | 30 |
SPM(MIN) | 160-280 | 160-240 | 160-220 | 150-200 |
Max Die Height(MM) | 360 | 400 | 400 | 420 |
Die Height Adjustment(MM) | 50 | 50 | 50 | 50 |
Boster(F.B*L.R*T)(MM) | 550*980 | 600*1180 | 700*1380 | 800*1550 |
Boster Opening(F.B*L.R)(MM) | 500*950 | 550*1050 | 600*1250 | 650*1450 |
Between Columns(MM) | 1000 | 1200 | 1400 | 1600 |
Motor Power(KW) | 11 | 18.5 | 22 | 30 |
Air Pressure(MM) | 0.5 | 0.5 | 0.5 | 0.5 |
Net Weight(KG) | About 9000 | About11500 | About15000 | About19000 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
