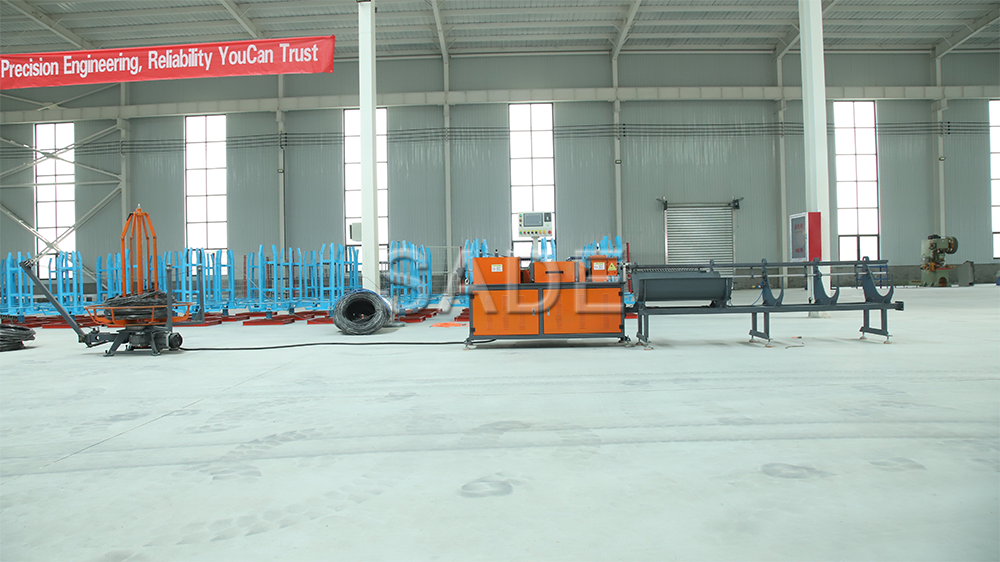

it special suitable for Wire Mesh Welding Line, Usually applied for construction technology and building operation .The machine adopts PLC control, with servo cutting, has simple and reliable operation and adjustment. Realized automatic scale, not need artificial regulation. The machine is unique in China.
Machine performance:
1,High-efficiency.
2.High precision, cut off length error less than 3mm.
3,PLC Control, touching operation and fault display function.
4.Straightening Range,wire range according to your require.
5.Low Failure Rate , according to process precision processing strictly to ensure long time trouble-free operation.
Machine parameters
Wire diameter (mm) | 3-6 | 4-8 | 5-12 | 8-14 | 8-16 | 12-20 |
Working speed (m/min) | Max 120 | Max 120 | Max 130 | Max 130 | Max 130 | Max 60 |
Power (Kw) | 4+1.5+2.6+2 | 11+3 | 30=7.5 | 37+7.5 | 45+7.5 | 30+18.5 |
Straightness Accuracy | ±1mm | ±2mm | ||||
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
