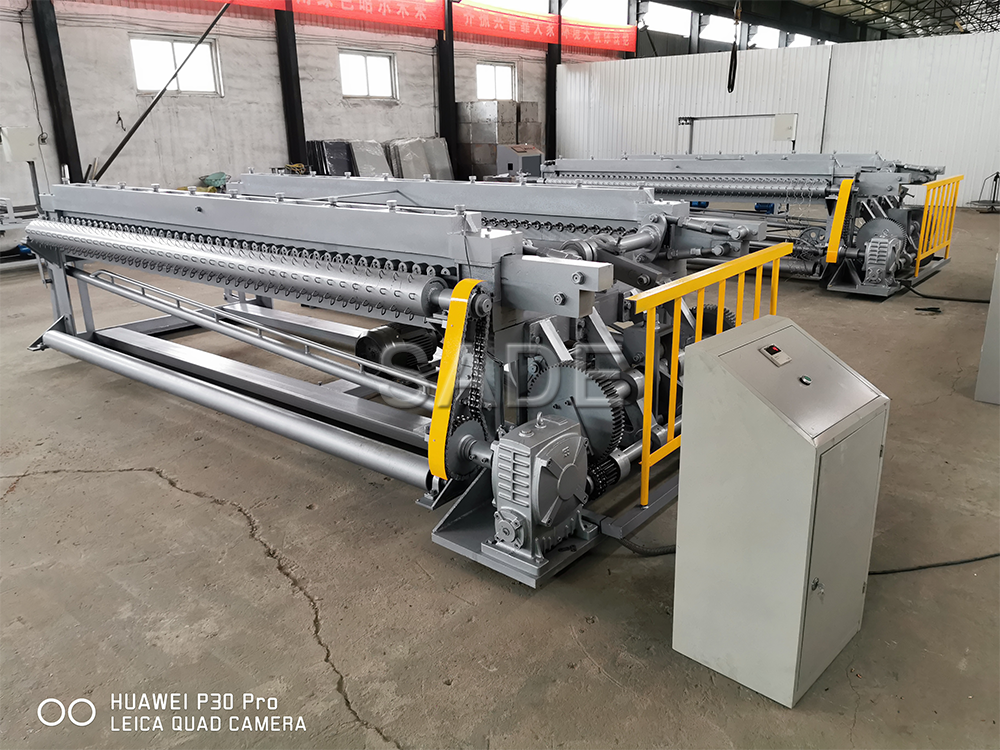

The Horizontal Gabion Mesh Machine is a specialized equipment designed for the production of gabion mesh, widely used in construction, environmental protection, and road construction industries. Gabion mesh is commonly applied in hydraulic engineering, slope protection, retaining walls, and riverbank protection projects due to its excellent protective and stabilizing properties. This machine uses a horizontal weaving process, automatically weaving steel wires into mesh grids, with adjustable grid spacing to meet different requirements, enabling efficient production of gabion mesh to specification.
Machine performance:
l High efficiency: Automated weaving process to improve production efficiency.
l Flexible adjustment: Allows adjustment of grid size and wire thickness according to customer requirements.
l Strong stability: Durable and suitable for harsh working environments.
l Easy operation: High automation reduces manual intervention.
Machine parameters
Name 名称
| Horizontal type hexagonal wire mesh machine 卧式石笼网机
| ||
Wire Diameter 丝径(mm)
| 1.2-3.0
| ||
Mesh Size网孔尺寸(mm)
| 50x70,60x80,70x90,80x100，90x110，100x120,110x130
| ||
Mesh Width 网宽(m)
| 2.5(2x1.2)
| 3(2x1.5)
| 4(2x2)
|
Motor电机功率(kw)
| 7.5
| 11
| 11
|
Overall size 尺寸(m)
| 4.5*2.3*1.3m
| 5.3*2.3*13m
| 6.5*2.3*1.3m |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
