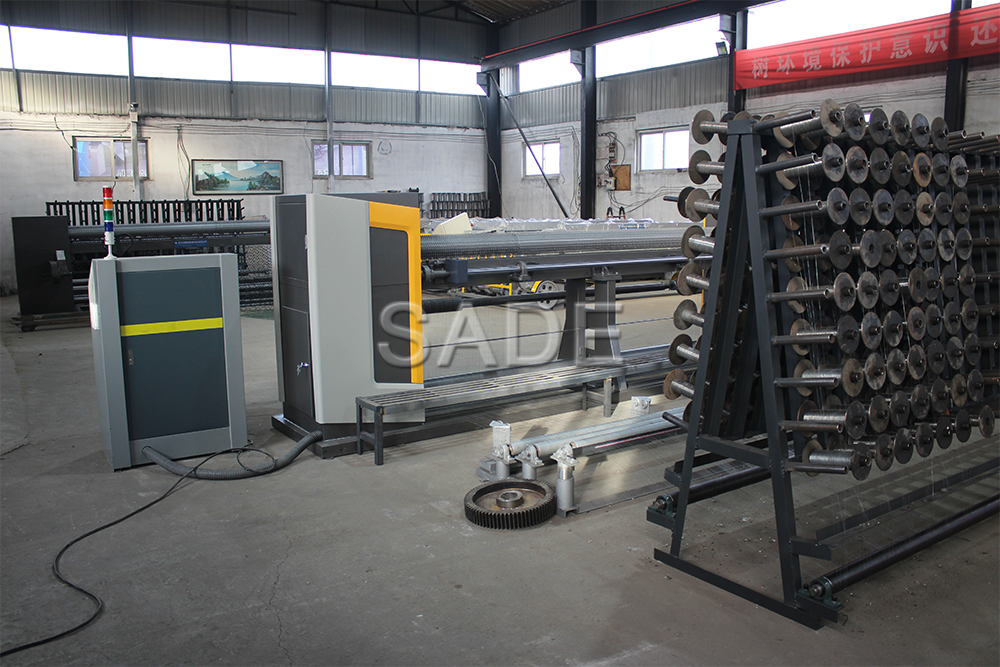

Hexagonal wire mesh machine is an automated equipment specially designed for weaving hexagonal metal mesh, commonly used in gabion mesh, poultry cages, and protective fencing. With advanced control systems and weaving technology, the machine ensures stable and efficient production of various mesh specifications. It is widely applied in agriculture, construction reinforcement, slope protection, and hydraulic engineering. Key advantages include high weaving speed, uniform mesh size, easy operation, and low maintenance cost, making it an ideal choice for mesh manufacturers.
Machine parameters
Model型号
| Wire diameter丝径范围(mm) | Hole size网孔(mm) | Max mesh width 最大网宽(mm) | Output 产能
| Dimensions 尺寸(LXWXH) mm
| Weight重量(T)
| |
Mesh/min | m/h
| ||||||
ZJ1/2 | 0.4-8 | 16 | 3300/2600 | 80 | 70-80 | 4500x2200x1450 | 4.6 |
ZJ3/4 | 0.38-0.9 | 20 | 3300/2600 | 70-75 | 105-112 | 4500x2200x1450 | 4.6 |
ZJ1 | 0.38-1.2 | 28 | 3300/2600 | 70 | 126 | 4500x2200x1450 | 4.6 |
ZJ1.2 | 0.45-1.5 | 32 | 3300/2600 | 60-70 | 162-189 | 4500x2200x1450 | 4.6 |
ZJ1.5 | 0.5-1.5 | 40 | 3300/2600 | 60-70 | 189 | 4500x2200x1450 | 4.6 |
ZJ2 | 0.7-2.2 | 57 | 3300/2600 | 60 | 70-80 | 4500x2200x1450 | 4.6 |
ZJ3 | 0.7-2.5 | 86 | 3300/2600 | 50 | 105-112 | 4500x2200x1450 | 4.6 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
