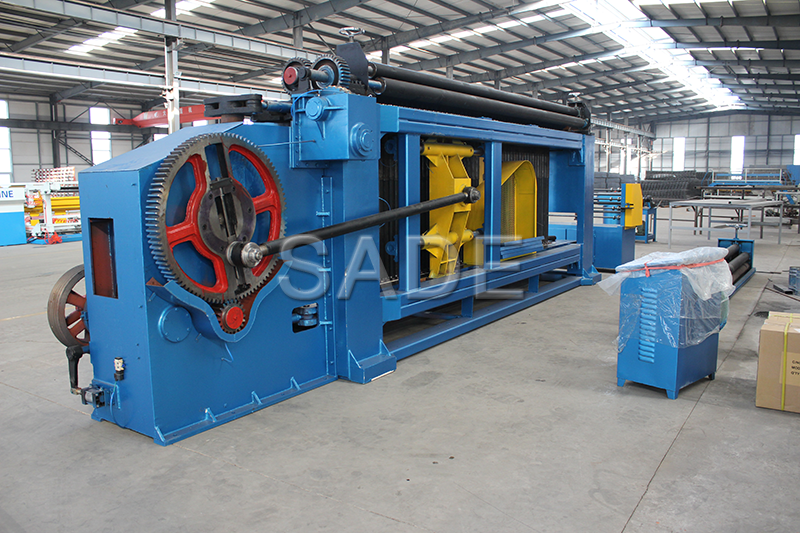

Gabion mesh machine is a specialized equipment used for producing hexagonal wire mesh (commonly known as gabion mesh, reinforced mesh, or Reno mattress). This machine can automatically complete processes such as wire coiling, weaving, cutting, and edge binding. It is widely used in hydraulic engineering, highway and railway protection, slope stabilization, and ecological riverbank construction. Gabion mesh is known for its high strength, corrosion resistance, and long service life, making it an ideal solution for erosion control and environmental protection.
Machine parameters
型号 Model | 丝径 Wire Diameter (mm) | 网孔 Mesh Size (mm) | 网宽 Width (mm) | 扭花数 Twist (r) | 电机功率 Power of Motor (kW) | 产能 Output (m/h) | 尺寸 Dimensions (L×W×H mm) | 重量 Weight (T) |
LE3300A | 1.8–3.2 | 60×80 | 3300
| 3 | 15
| 165 | 6200×1400×2400
| 14
|
LE3300B | 1.8–4.0 | 80×100 | 3 | 200 | ||||
LE3300C | 1.8–4.0 | 100×120 | 3 | 225 | ||||
LE3300D | 1.8–4.2 | 120×150 | 3 | 255 | ||||
LE4300A | 1.8–3.2 | 60×80 | 4300 | 3 |
20 | 165 | 7200×1400×2400
| 15
|
LE4300B | 1.8–4.0 | 80×100 | 3 | 200 | ||||
LE4300C | 1.8–4.0 | 100×120 | 3 | 225 | ||||
LE4300D | 1.8–4.2 | 120×150 | 3 | 255 | ||||
LE5300A | 1.8–3.2 | 60×80 | 5300
| 5 |
32 | 165 | 8200×1400×2400
| 17
|
LE5300B | 1.8–4.0 | 80×100 | 5 | 200 | ||||
LE5300C | 1.8–4.0 | 100×120 | 5 | 225 | ||||
LE5300D | 1.8–4.2 | 120×150 | 5 | 225 |
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
