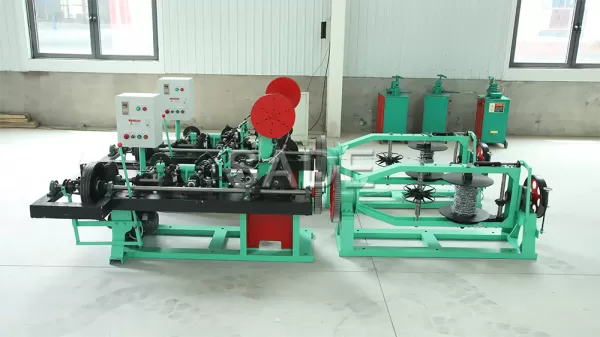

This machine can produce barbed wire ,barbed wire fence which is widely used in national defense, military, railway, highway, agricultural, animal husbandry and other industries. The materials can be hot dipped galvanized wire, electric galvanized wire ,PVC coated wire etc.
Machine performance:
The barbed wire machine have three models: CS-A Double Twisted Barbed Wire Machine,CS-B Single Twisted Barbed Wire Machine,CS-C Reverse Double Twisted Barbed Wire Machine ,
The Application or The Barbed Wire
barbed wire is widely used in banks, and living quarters,
private houses, villas, doors and windows, highways, railway guardrails, and border lines to protect security .
Machine parameters
Machine Model | CS-A | CS-B | CS-C |
Type Of Products | Double Twisted | Single Twisted | Reverse Double Twisted |
Voltage | 3 Phase / 220V /380V/415V /440V/ 50Hz/ 60Hz | ||
Power | 3KW | 2.2KW | 2.2KW |
Productivity | 100-200 Kgs/h | 60-100 Kgs/h | 100-200 Kgs/h |
Barb Space | 3'' 4'' 5'' 6'' 7'' As Required | ||
Strand Wire Diameter | 1.8-3.0mm | 1.6-2.6mm | 1.5-2.8mm |
Barb Wire Diameter | 1.7-2.8mm | 1.6-2.2mm | 1.5-2.6mm |
Wire Materials | Carbon Steel Wire,Galvanized Steel Wire,PVC Coated Wire,Stainless Steel Wire | ||
01
Requirement Communication
We discussed the detaills for customer’s requirements including product specifications, functions, etc.
02
Scheme Design
According to customer needs, the company's design department provides a preliminary design plan and confirms it with the customer.
03
Technical Evaluation
The technical team conducts a feasibility evaluation of the plan to ensure that it meets production requirements and customer needs.
04
Contract Signing
After the two parties reach a consensus on the design plan, price, delivery date, etc., they sign a formal contract.
05
Manufacturing
The production department customizes the equipment according to the contract requirements to ensure quality and performance.
06
Quality Inspection
The quality inspection department conducts strict debugging and inspection of the finished equipment to ensure that it meets customer requirements.
07
Delivery Acceptance
After the customer's on-site/video debugging and acceptance is qualified, the product will be delivered and relevant operation guidance will be provided.
